The user must comment the following lines in order to execute this model:

  • xnsl_tcltk_frame.c  in the method create widget comment cambios egr  (Tcl_Eval and sprintf must be commented), and uncomment  the line markked as original(the word original is commented itself).

Running the RETINA model:

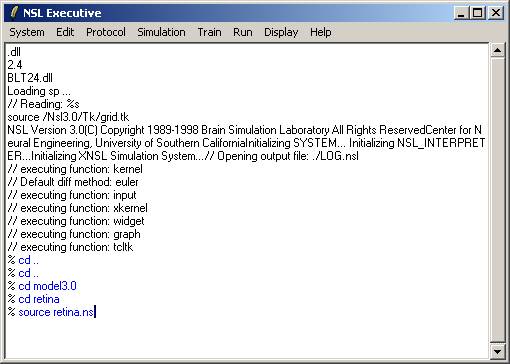

From the Nsl Executive window find the file retina.nsl and once in that directory type “source retina.nsl”.

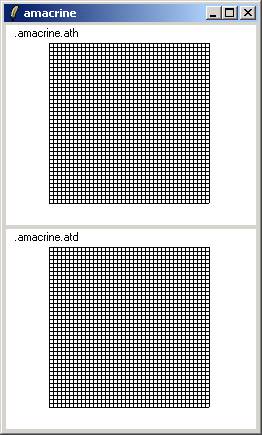

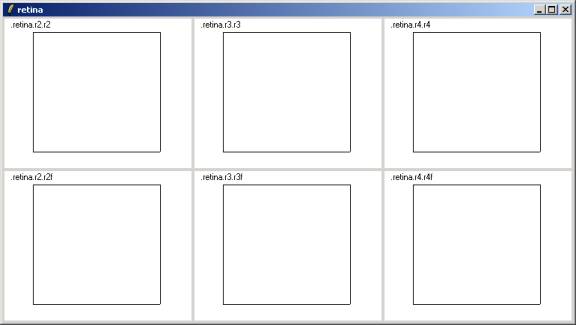

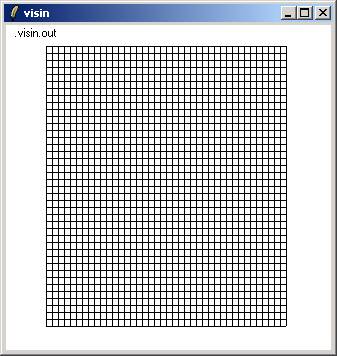

Then three other windows should appear.

Load one of the following model input to the simulation:

 1. nsl load retina_worm.nsl

 2. nsl load retina_antiworm.nsl

 3. nsl load retina_square.nsl

Type “nsl run” to execute the simulation.

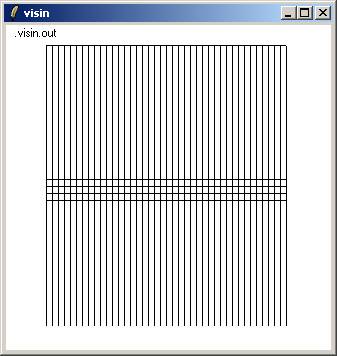

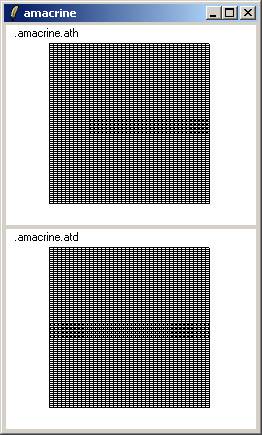

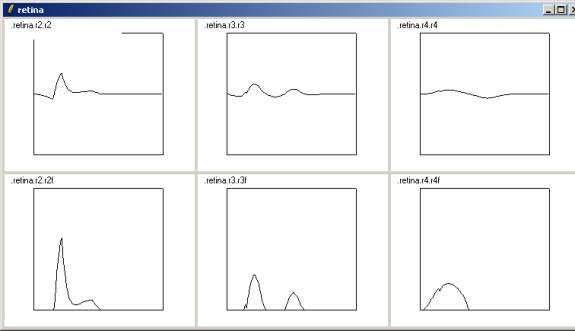

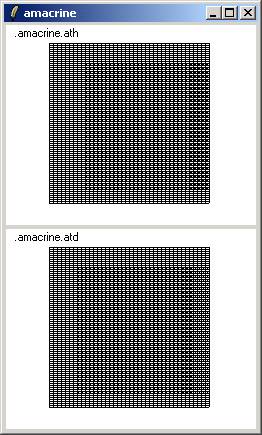

The windows should show the progress of the simulation.
